wheeled excavator

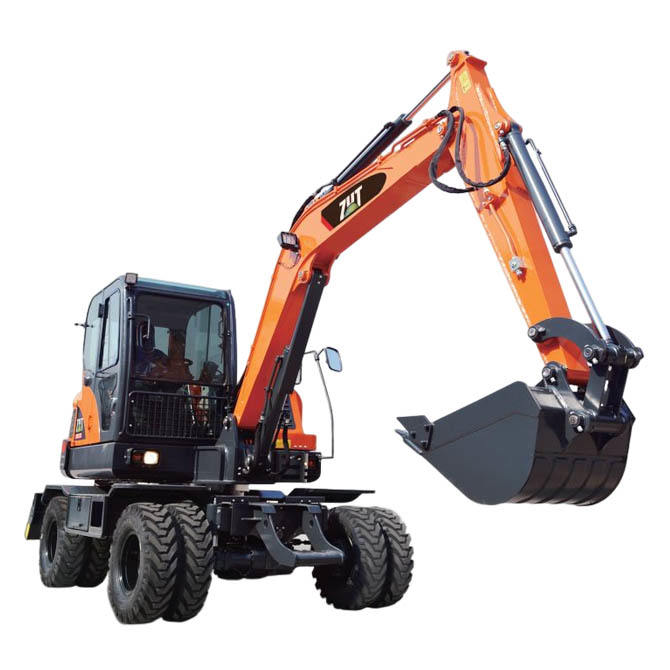

ZT75W

  • Engines:

    4TNV98L

  • Main control valve:

    RS12

  • Travel motor:

    A6VM80

  • Slewing motors:

    JMF43

  • Hydraulic main pumps:

    A10V071

  • Centre coupling:

    FSJ150-37D-00000

REAR PARTS HIGH CONFIGURATION HIGH PERFORMANCE

1. Modular design of cabin components, easy for daily maintenance

2. Fuel filter system with oil-water separator

3. Upgrade the air filtration system to cope with the harsh working environment

IMPORTED WITH ORIGINAL PACKAGING, HIGH EFFICIENCY AND ENERGY SAVING, STABLE AND RELIABLE

1. Imported Rexroth hydraulic pump

2. Imported Yanmar engine

3. Imported wet axle system

4. Chassis tuning and upgrading to enhance stability

THE WORKING MECHANISM IS LENGTHENED AND UPGRADED, SOLID AND STABLE, AND SUPER LOAD;

1. The structure of the boom bottom plate is strengthened to reduce stress concentration

2. The size of the working mechanism is lengthened and thickened to meet the needs of heavier load operations

3. Fully upgrade twin-tire walking, and work without fear of flat tires

ERGONOMIC DESIGN SPACIOUS AND COMFORTABLE FLEXIBLE AND CONVENIENT

1. The interior space of the operating room is bright and bright

2. Lift-type easy-to-open front window

3. Equipped with safety hammer and fire extinguisher

INTIMATE LAYOUT OF THE CAB, LUXURIOUS CONFIGURATION, HANDY

1. Large color LCD screen.

2. High air volume circulating air conditioning system

3. Function panel integration design

4. Car multimedia player
5. Powerful performance radiator

Complete machine quality6150kg
Rated bucket capacity0.23m³
Engine power rating46.3KW

Rotation speed

8rpm
Travel speed30/10km/hr
Climbing capacity70%

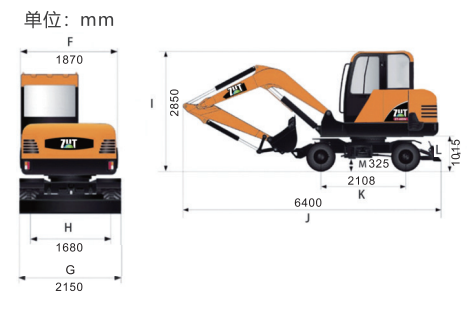

Transport length6330mm
Transport width2150mm
Transport height2870mm
Turning radius2420mm
Turntable height from the ground980mm
Turntable width1940mm
Turntable end length1685mm
Minimum ground clearance290mm
Distance from the centre of the slewing centre to the centre of the drive wheel1250 front / 870mm rear
Wheelbase2120mm
Wheelbase1685mm

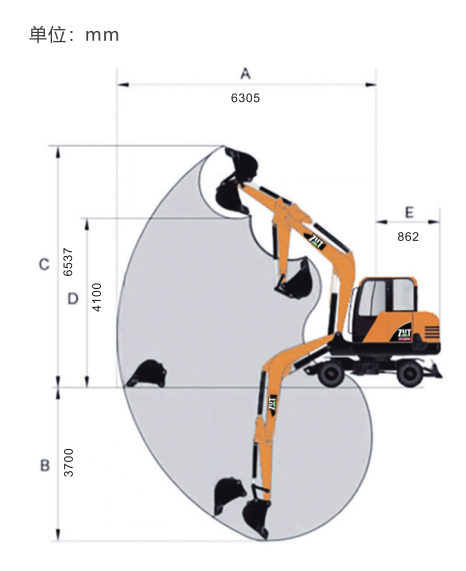

Maximum digging radius6600mm
Maximum digging depth3700mm
Maximum digging height6700mm
Maximum unloading height4770mm
Engines4TNV98L
Main control valveRS12
Travel motorsA6VM80
Slewing motorsJMF43
Hydraulic main pumpsA10V071
Centre jointFSJ150-37D-00000
