wheeled excavator

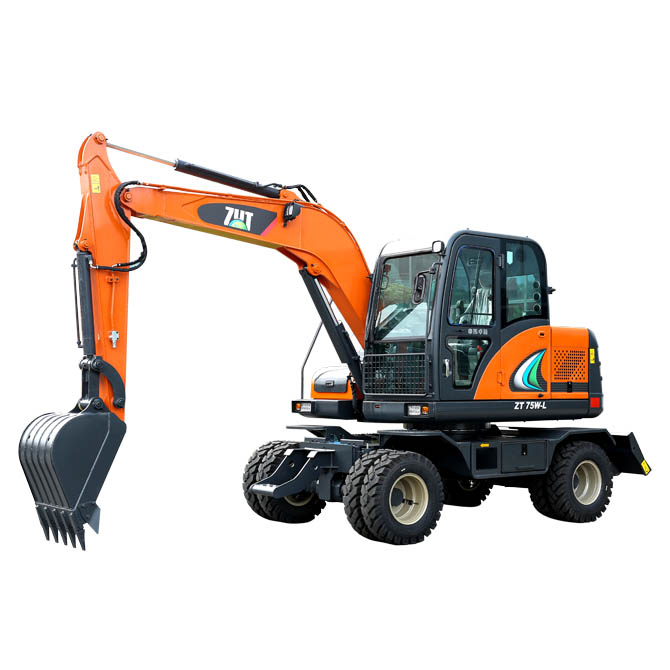

ZT75W-L

  • Engines:

    4TNV98L

  • Main control valve:

    HVSE-12-08-PLL280-BE120

  • Travel motor:

    A6VM80

  • Slewing motors:

    JMF43

  • Hydraulic main pumps:

    HP5V76/AV10RC2S3MA/L1/1

  • Centre coupling:

    FSJ150-37D-00000

REAR PARTS HIGH CONFIGURATION HIGH PERFORMANCE

1. Modular design of cabin components, easy for daily maintenance

2. Fuel filter system with oil-water separator

3. Upgrade the air filtration system to cope with the harsh working environment

IMPORTED WITH ORIGINAL PACKAGING, HIGH EFFICIENCY AND ENERGY SAVING, STABLE AND RELIABLE

1. Imported Rexroth hydraulic pump

2. Imported Yanmar engine

3. Imported wet axle system

4. Chassis tuning and upgrading to enhance stability

THE WORKING MECHANISM IS LENGTHENED AND UPGRADED, SOLID AND STABLE, AND SUPER LOAD;

1. The structure of the boom bottom plate is strengthened to reduce stress concentration

2. The size of the working mechanism is lengthened and thickened to meet the needs of heavier load operations

3. Fully upgrade twin-tire walking, and work without fear of flat tires

ERGONOMIC DESIGN SPACIOUS AND COMFORTABLE FLEXIBLE AND CONVENIENT

1. The interior space of the operating room is bright and bright

2. Lift-type easy-to-open front window

3. Equipped with safety hammer and fire extinguisher

INTIMATE LAYOUT OF THE CAB, LUXURIOUS CONFIGURATION, HANDY

1. Large color LCD screen.

2. High air volume circulating air conditioning system

3. Function panel integration design

4. Car multimedia player
5. Powerful performance radiator

Complete machine quality7310kg
Rated bucket capacity0.27m³
Engine power rating46.3KW

Rotation speed

9rpm
Travel speed30/14km/hr
Climbing capacity70%

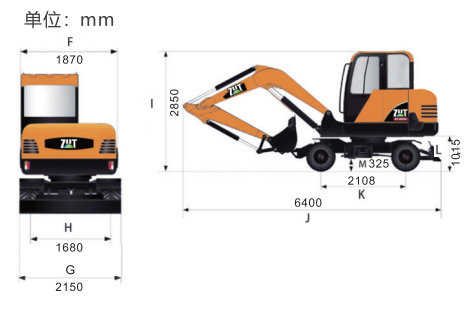

Transport length6450mm
Transport width2205mm
Transport height2885mm
Turning radius2430mm
Turntable height from the ground1040mm
Turntable width2065mm
Turntable end length1600mm
Minimum ground clearance290mm
Distance from the centre of the slewing centre to the centre of the drive wheel1415 front / 970mm rear
Wheelbase2385mm
Wheelbase1685mm

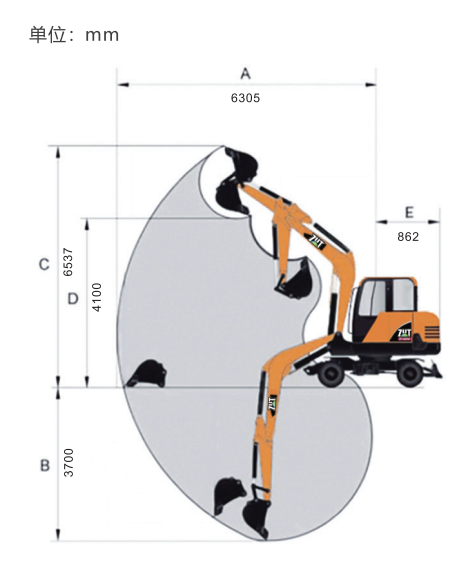

Maximum digging radius6770mm
Maximum digging depth3596mm
Maximum digging height6740mm
Maximum unloading height4780mm
Engines4TNV98L
Main control valveHVSE-12-08-PLL280-BE120
Travel motorsA6VM80
Slewing motorsJMF43
Hydraulic main pumpsHP5V76/AV10RC2S3MA/L1/1
Centre jointFSJ150-37D-00000
