wheeled excavator

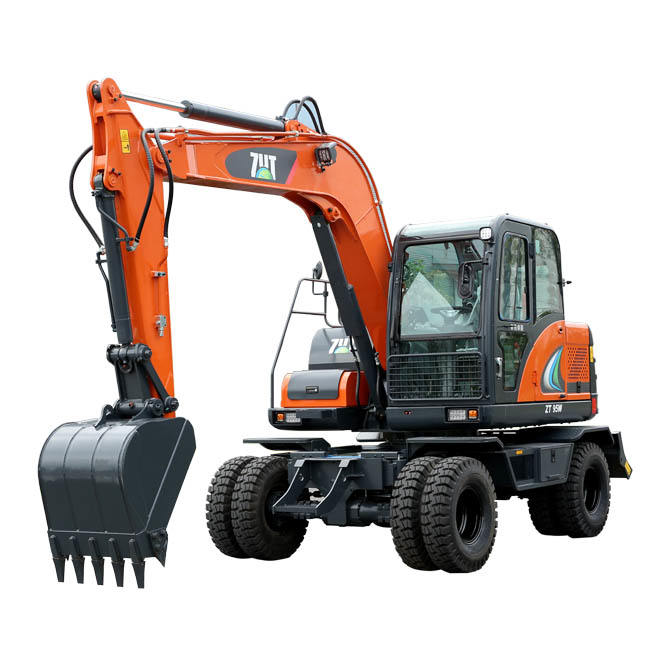

ZT95W

  • Engines:

    4TNV98T

  • Main control valve:

    HVSE-18-07-PLL300-BE12S

  • Travel motor:

    A6VM80

  • Slewing motors:

    JMF47

  • Hydraulic main pumps:

    HP5V85/AV10RC4S3MM-L1/1-TZW91

  • Centre coupling:

    FSJ150-37D-00000

Complete machine quality8100kg
Rated bucket capacity0.29m³
Engine power rating56.5KW

Rotation speed

9rpm
Travel speed30/14km/hr
Climbing capacity70%
Transport length6625mm
Transport width2400mm
Transport height3150mm
Turning radius2370mm
Turntable height from the ground1035mm
Turntable width2205mm
Turntable end length1825mm
Minimum ground clearance305mm
Distance from the centre of the slewing centre to the centre of the drive wheel1370 front / 1030mm rear
Wheelbase2400mm
Wheelbase1815mm
Maximum digging radius6725mm
Maximum digging depth3948mm
Maximum digging height7070mm
Maximum unloading height5040mm
Engines4TNV98L
Main control valveHVSE-18-07-PLL300-BE12S
Travel motorsA6VM80
Slewing motorsJMF47
Hydraulic main pumpsHP5V85/AV10RC4S3MM-L1/1-TZW91
Centre jointFSJ150-37D-00000
