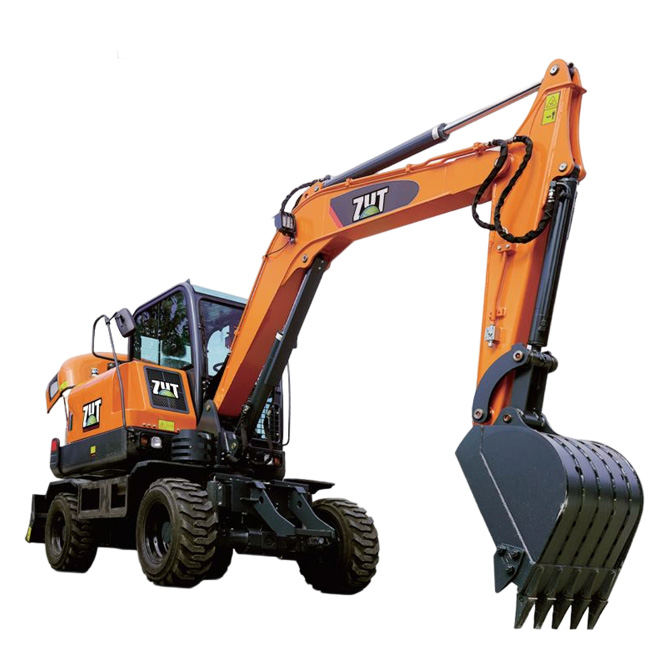

wheeled excavator

ZT60W

  • Engines:

    4TNV98L

  • Main control valve:

    KX-16

  • Travel motor:

    A6VM80

  • Slewing motors:

    6SM300319

  • Hydraulic main pumps:

    AP2D28

  • Centre coupling:

    FSJ150-37D-00000

Highly configurable high performance rear components

1. The engine compartment has been carefully laid out to make routine maintenance easier and more convenient

2. High precision fuel filters, oil and water separators

3. Air Filters

Original imported energy efficient, stable and reliable

1. Imported Rexroth hydraulic pump

2. Japan imported Yanmar engine fuel saving and durable

3. Imported wet brake axle


The cab is a thoughtful layout, luxuriously equipped and easy to use

1. One button to switch between various scenes LCD display

2. Powerful performance cooler

3. Easy to remove breakaway feet
4. Easy to operate throttle knob
5. On-board multimedia playback system

Ergonomic design is spacious, comfortable, flexible and convenient

1. Spacious and luxurious multifunctional cab

2. Convenient safety hammer and fire extinguisher

3. Lift-up function for easy opening of front windows

Complete machine quality5580kg
Rated bucket capacity0.21m³
Engine power rating46.3KW

Rotation speed

8rpm
Travel speed30/10km/hr
Climbing capacity70%
Transport length6100mm
Transport width1925mm
Transport height2850mm
Turning radius2350mm
Turntable height from the ground986mm
Turntable width1850mm
Turntable end length1650mm
Minimum ground clearance290mm
Distance from the centre of the slewing centre to the centre of the drive wheel1240 front / 860mm rear
Wheelbase2100mm
Wheelbase1600mm
Maximum digging radius6150mm
Maximum digging depth3500mm
Maximum digging height6070mm
Maximum unloading height4340mm
Engines4TNV98L
Main control valveKX-16
Travel motorsA6VM80
Slewing motors6SM300319
Hydraulic main pumpsAP2D28
Centre jointFSJ150-37D-00000
