crawler excavator

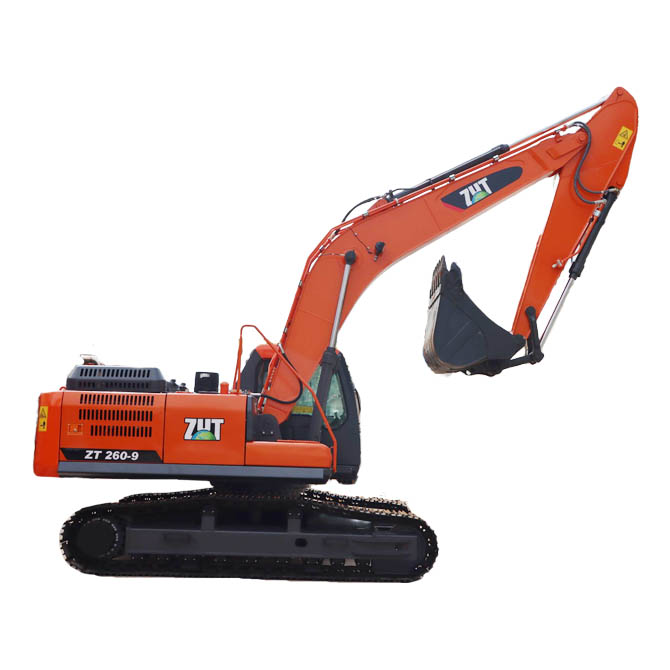

ZUT260-9

  • Main control valve:

    JV320C

  • Engine:

    CumminsQSB7

  • Travel motor:

    ZTM40 147/99

  • Swing motor:

    M2X150

  • Hydraulic main pump:

    K5V140DTP-9N01-17T

  • Center joint:

    imported from Korea

performance parameter

Total weight24500kg
Volume of Bucket1.2m3
Engine power140KW
Swing speed10.7rpm
Travel speed5.9/3.2km/hr
Ground pressure0.46Kpa
Gradeability28i
Digging force156.6KN
Total width3090mm
Shipping length9600mm
Total height of transport boom3005mm
Cab height3000mm
Turning radius at the end of the platform2794mm
Ground clearance475mm
Counterweight ground clearance1096mm
Gauge2400mm
Total width2990mm
Total length of running gear4440mm
The total width of the crawler undercarriage2990mm
Shaft diameter3650mm
Track shoe width600mm
Max digging depth6592mm
Max vertical digging depth3929mm
Max digging height9616mm
Max loading height6830mm
Max dig radius distance9873mm
Min radius of swing3560mm
