crawler excavator

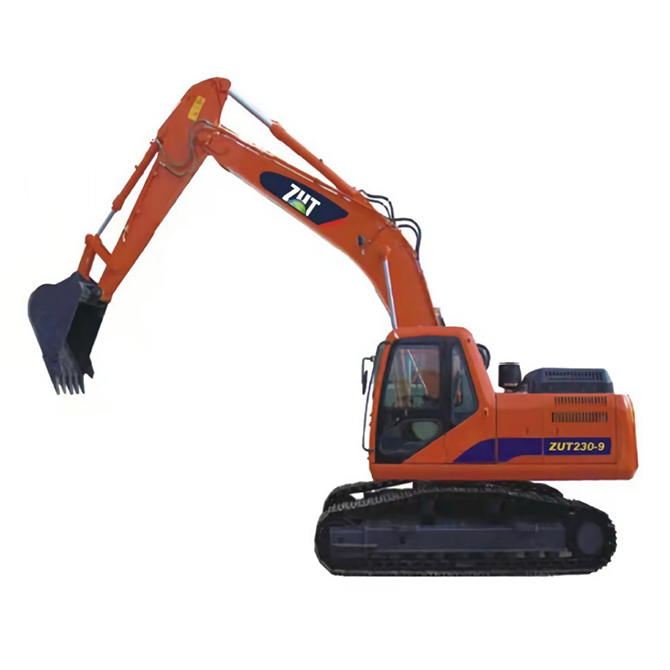

ZUT230-9

  • Main control valve:

    JV320C

  • Engine:

    Cummins QSB7

  • Travel motor:

    ZTM40 147/99

  • Swing motor:

    M2X150

  • Hydraulic main pump:

    K3V112DTHNOV-12T

  • Center joint:

    Imported from Korea

performance parameter

Total weight22000kg
Volume of Bucket1.0m3
Engine power124KW
Swing speed10.7rpm
Travel speed5.9/3.2km/hr
Ground pressure0.46kg/cm²
Gradeability28i
Digging force149KN
Total width2990mm
Shipping length9600mm
Total height of transport boom3005mm
Cab height3000mm
Turning radius at the end of the platform2794mm
Ground clearance475mm
Counterweight ground clearance1096mm
Gauge2400mm
Total width2990mm
The total width of the crawler undercarriage4440mm
The total width of the crawler undercarriage2990mm
Shaft diameter3650mm
Track shoe width600mm
Max digging depth6592mm
Max vertical digging depth3929mm
Max digging height9616mm
Max loading height6830mm
Max dig radius distance9873mm
Min radius of swing3560mm
