crawler excavator

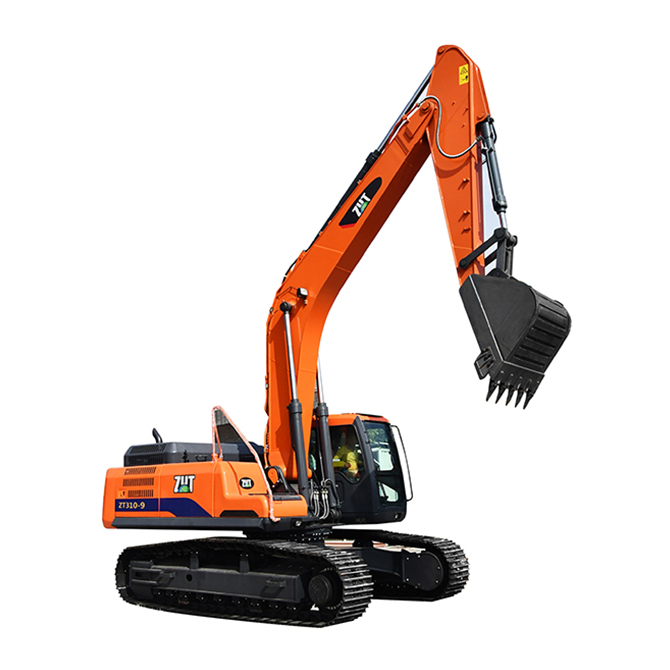

ZUT310-9

  • Main control valve:

    JV320E

  • Engine:

    Cummins QSB7

  • Travel motor:

    DX300-182/116

  • Swing motor:

    DH300-7

  • Hydraulic main pump:

    kvv140dtp-9n01-17t

  • Center joint:

    Imported from Korea

performance parameter

Total weight22000kg
Volume of Bucket1.4m3
Engine power169KW
Swing speed9.4rpm
Travel speed5.7/3.1km/hr
Ground pressure0.59kg/cm2
Gradeability26i
Digging force158.8KN
Total width3200mm
Shipping length10055mm
Total height of transport boom3697mm
Cab height3000mm
Turning radius at the end of the platform3188mm
Ground clearance506mm
Counterweight ground clearance1150mm
Gauge4039mm
Total width3199mm
Total length of running gear4940mm
The total width of the crawler undercarriage3200mm
Shaft diameter4039mm
Track shoe width600mm
Max digging depth7162mm
Max vertical digging depth4842mm
Max digging height9975mm
Max loading height7204mm
Max dig radius distance10175mm
Min radius of swing4016mm
