crawler excavator

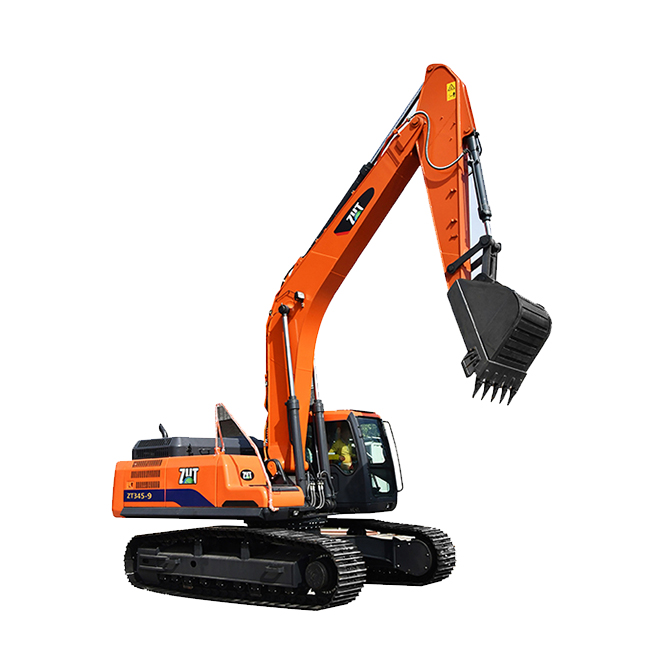

ZUT345-9

  • Main control valve:

    JV320E

  • Engine:

    Engine:

  • Travel motor:

    DX300-182/116

  • Swing motor:

    DH300-7

  • Hydraulic main pump:

    K5V1 60DTP-9N4A-17T

  • Center joint:

    Imported from Korea

performance parameter

Total weight31800kg
Volume of Bucket1.5/1.65m³
Engine power212KW
Swing speed8.2rpm
Travel speed5.7/3.2km/hr
Ground pressure0.59kg/cm²
Gradeability25i
Digging force175.6KN
Total width3200mm
Shipping length10615mm
Total height of transport boom3697mm
Cab height3000mm
Turning radius at the end of the platform3188mm
Ground clearance506mm
Counterweight ground clearance1150mm
Gauge2550mm
Total width3199mm
Total length of running gear4940mm
The total width of the crawler undercarriage3200mm
Shaft diameter4039mm
Track shoe width600mm
Max digging depth7162mm
Max vertical digging depth4842mm
Max digging height9975mm
Max loading height7204mm
Max dig radius distance10175mm
Min radius of swing4016mm
