crawler excavator

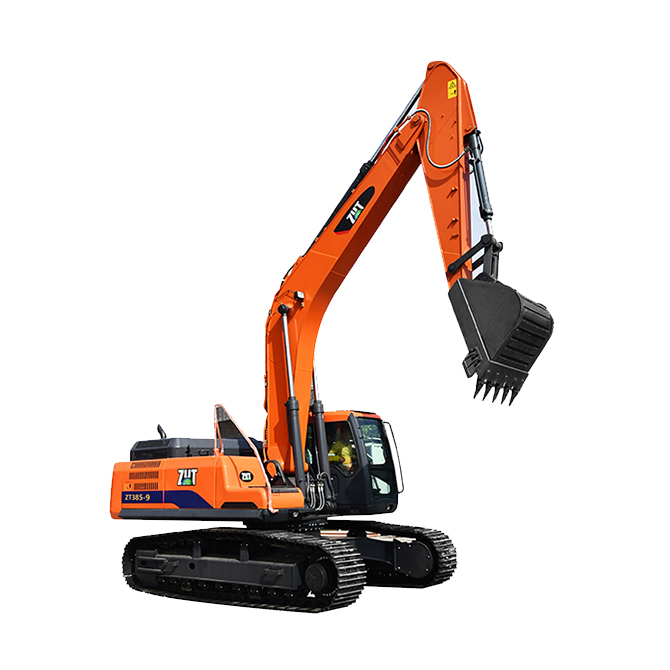

ZUT385-9

  • Main control valve:

    JV320E

  • Engine:

    Isuzu 6HK1

  • Travel motor:

    TM70

  • Swing motor:

  • Hydraulic main pump:

    K5V180

  • Center joint:

    Imported from Korea

performance parameter

Total weight37800kg
Volume of Bucket1.70m3
Engine power212KW
Swing speed8.2rpm
Travel speed4.95/3.02km/hr
Ground pressure0.69kg/cm²
Gradeability20i
Digging force196.5KN
Total width3350mm
Shipping length11310mm
Total height of transport boom3560mm
Cab height3170mm
Turning radius at the end of the platform3500mm
Ground clearance540mm
Counterweight ground clearance1270mm
Gauge2600mm
Total width2990mm
Total length of running gear5215mm
The total width of the crawler undercarriage3300mm
Shaft diameter4250mm
Track shoe width600mm
Max digging depth7550mm
Max vertical digging depth4620mm
Max digging height10380mm
Max loading height7385mm
Max dig radius distance11192mm
Min radius of swing4501mm
