crawler excavator

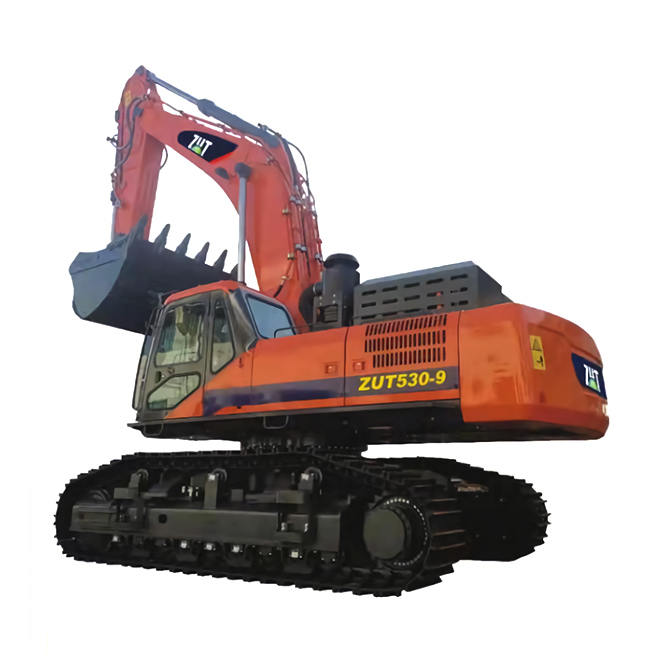

ZUT530-9

  • Main control valve:

    MO400

  • Engine:

    German Man DE12

  • Travel motor:

    ZTM100- 254/144

  • Swing motor:

    M2X150

  • Hydraulic main pump:

    Kawasaki 212

  • Kawasaki 212

    Imported from Korea

performance parameter

Total weight50500kg
Volume of Bucket2.40m³
Engine power238KW
Swing speed9.0rpm
Travel speed5.3/3.1km/hr
Ground pressure0.88kg/cm2
Gradeability16i
Digging force255.1KN
Total width3900mm
Shipping length12310mm
Total height of transport boom3860mm
Cab height3372mm
Turning radius at the end of the platform3800mm
Ground clearance725mm
Counterweight ground clearance1425mm
Gauge3250mm
Total width2990mm
Total length of running gear5504mm
The total width of the crawler undercarriage3340*3900mm
Shaft diameter4470mm
Track shoe width600mm
Max digging depth7312mm
Max vertical digging depth2955mm
Max digging height10880mm
Max loading height7750mm
Max dig radius distance11716mm
Min radius of swing5235mm
