wheeled excavator

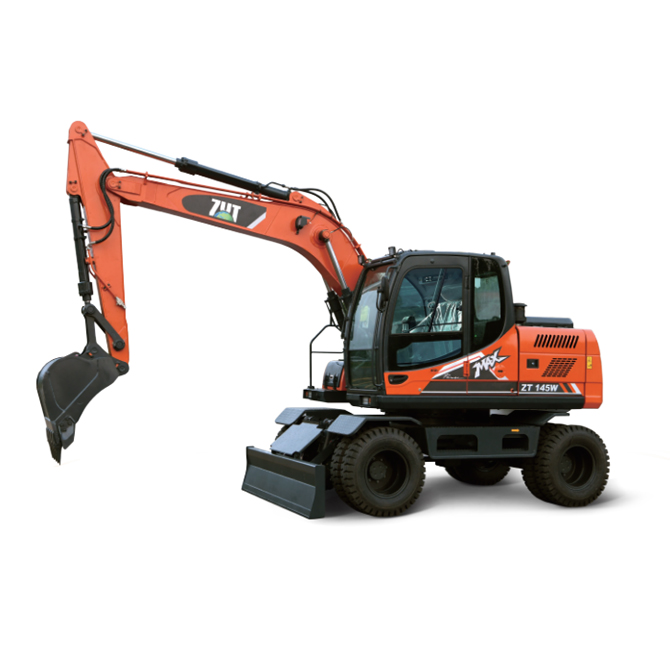

ZT145W

  • Engines:

    Cummins QSB-3.9

  • Power rating:

    110kw

  • Working weight:

    12.5ton

  • Bucket:

    0.5m³

Engine
ModelCummins QSB-3.9
TypeIn-line

Inhale

Turbocharged
Number of cylinders4
Bore102
Piston stroke120
Rated power110kw
Slewing system
Drive modeHydraulic drive
Reduction mechanismPlanetary Gear Reducer
Swing Operation BrakeWet multi-disc brakes
Spinning speed9rpm
Drives and Brakes
Steering controlHydraulic steering wheel control
Drive modeHydraulic drive
Travel motorAxial piston hydraulic motors
Walking speed (high/low)38/10km/h
Service brakeMulti-piece brake
Parking brakeMulti-piece brake

Operating Weight (Operator, Lubricant, Coolant, Full Fuel Tank & Standard)


Boom4350mm
Stick2100mm
Bucket0.48m³(0.52m³)
Working weight12.5ton
Maximum Digging Force (ISO)
Bucket72kN
Stick49kN
Hydraulic motor
Travel motorAxial plunger type x 1
Swing Operation BrakeWet multi-disc brakes
Main pump
typeAxial piston pumps
Maximum flow2×176L/min
Fuel tank capacity
Fuel tank L210
Hydraulic tank (oil dipstick level) L130
Technical parameter
Shipping length7666mm
Shipping width2530mm
Transport height3150mm
Radius of gyration2370mm
The height of the turntable from the ground1220mm
Turntable width2410mm
Turntable tail length2100
Minimum ground clearance310mm
The distance from the center of the slewing center support drive wheel1403 front/1257mm rear
wheel base2650mm
Wheel base1815mm
Maximum digging radius7597mm
Maximum digging depth4400mm
Maximum digging height8330mm
Maximum unloading height5965mm
