wheeled excavator

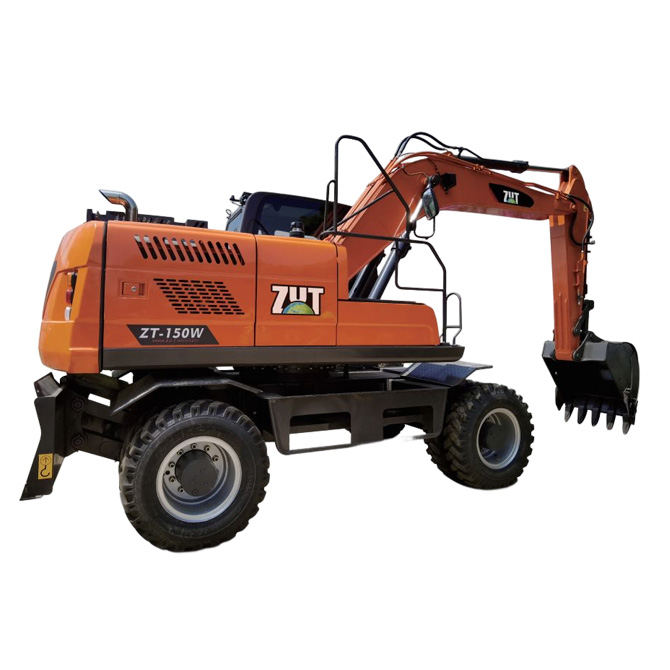

ZT150W

  • Engines:

    QSB5.9-C210-30

  • Main control valve:

    TX-22

  • Travel motor:

    A6VM107

  • Slewing motors:

    SD79

  • Hydraulic main pumps:

    K5V80

  • Centre coupling:

    Imported from Korea

Complete machine quality13500kg
Rated bucket capacity0.57m³
Engine power rating154KW

Rotation speed

12.1rpm
Travel speed38/10km/hr
Climbing capacity70%
Transport length7350mm
Transport width2523mm
Transport height3500mm
Turning radius2468mm
Turntable height from the ground1260mm
Turntable width2480mm
Turntable end length2250mm
Minimum ground clearance350mm
Distance from the centre of the slewing centre to the centre of the drive wheel1780 front / 1100mm rear
Wheelbase2880mm
Wheelbase2240mm
Maximum digging radius7700mm
Maximum digging depth4477mm
Maximum digging height8336mm
Maximum unloading height6030mm
EnginesQSB5.9-C210-30
Main control valveTX-22
Travel motorsA6VM107
Slewing motorsSD79
Hydraulic main pumpsK5V80
Centre jointImported from Korea
