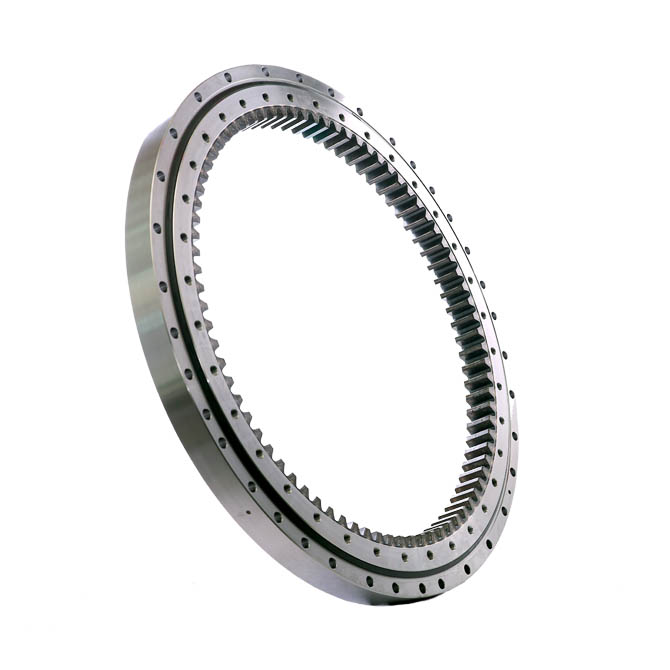

slewing ring

SLEWING RING

get a quote

Service Hotline

+86-133-7645-7172
+86-130-5459-7870

outer diameter
896
the inside diameter of
664
Waigao
60
inner high
60
Total height
68
Outer ring hole
20-Φ17 average

PARAMETER

Machine Type	Outer diameter	Inner diameter	External height	Inner High	Total height	Outer ring hole	Inner ring hole	Number of teeth
CLG907	896	664	60	60	68	20-Φ17all	20-M16 evenly countersunk holes Φ17 evenly spaced	84
CLG915C	1122	823	90	85	100	36-φ22all	36-φ22all	83
CLG915D	1122	820	90	85	100	36-Φ22	36-Φ22all	83
CLG225	1359	1080	68	88	100	36-Φ24all	36-M22all	91
CLG922D	1405	1129	70	88	100	36-Φ24	36-M22all	95
CLG922E	1430	1156	70	90	100	36-φ24	36-M22all	97
CLG925D	1397	1094	80	93	105	36-Φ24	36-M22all	93
DH80-7	900	642	72	65	83	24-Φ20all	24-M18all	82
DH150-7	1201	947	74	70	84	36-Φ22all	36-M20*1.5all	80
DH220-5	1325	1084	88	92	112	36-Φ21.5all	36-M20*1.5all	92
DH225-7	1327	1083	90	95	110	36-Φ21.5	36-M20*1.5all	92
DH258-7	1411	1134	89	105	117	35-φ26	36-M20×1.5all	82
DH300-7	1475	1164.5	90	110	120	35-Φ26	36-M24all	85
DH370-7	1553	1236	103	132	120	35-Φ25	40-M24all	90
DX150	1201	945	74	70	82	36-Φ22	36-M20*1.5all	80
DX260	1410	1131	88	106	117	35-φ26	36-M24all	82
DX300	1474	1165	90	110	121	35-Φ26	36-M24all	85
DX380	1585	1235	101	120	132	40-Φ26	40-M24all	90
E305.5	770	574	62	57	73	20-Φ18	18-Φ18	84
E307D	810	586	62	62	82	29-Φ18	38-Φ18all	75
E312	1115	882	60	67	75	29-φ18.5	30-M16all	90
E200B	1308	1082	85	87	100	33-M20	36-M20	110
E120B	1115	882	60	67	75	29-φ18.5	30-M16all	90
E300B	1315	1083	85	87	100	33-φ22	36-M20	110
E320C	1315	1084	73	93	105	42-Φ22	40-M20	110
E324D	1460	1164	88	95	110	34-∅26	36-M24all	85
E325D	1495	1164	93	95	110	38-Φ26	42-M24all	85
EC210	1325	1084	90	90	108	34-Φ23	36-M20all	92
EC240	1462	1162	96	105	120	33-φ24	36-M22all	85
EC290	1530	1236	90	110	122	35-φ26	40-M24all	90
EC360	1550	1236	108	135	148	35-Φ26	40-M24all	90
HD820-3	1322	1080	70	85	95	36-Φ22all	36-M20all	92
JCB200	1330	1093	74	92	102	33-Φ22	36-M20all	92
JCB220	1330	1093	74	92	102	31-Φ22.5	36-M20all	92
JCM913D	1120	856	66	66.5	76	36-φ22	36-M20all	86
JCM921	1327	1083	89	94	110	32-φ22	36-M20all	92
GC378	1550	1235	108	128	140	40-φ26	40-M24all	90
PC56	750	573	50	50	60	27-Φ14	24-Φ14all	90
PC60-7(76T)	806	596	60	61	74	23-Φ18	24-Φ18all	76
PC120-6(4D102)	1106	884	65	64	76	34-Φ18	38-M16all	90
PC120-6(4D95)	1110	882	65	64	77	34-Φ18	38-Φ18all	90
PC200-6(6D102)	1322	1084	77	90	100	32-φ24.5	36-M20all	110
PC200-7(110T)	1324	1083	77	90	100	40-Φ23.5	36-M20all	110
PC200-8	1320	1080	76	88	100	32-Φ24	36-M20all	96
PC220-7	1323	1073	77	100	112	32-Φ24	36-M22all	92
PC360-7	1532	1235	95	113	125	35-Φ26	40-M24all	90
R60-5	800	575	56	60	70	20-Φ17.5all	20-Φ17.5all	90
R60-7	800	590	60	61	74	20-Φ17.5all	20-Φ17.5all	86
R80-7	900	665	70	70	85	30-Φ17.5	30-Φ17.5all	85
R110-7	1095	863	70	70	80	36-Φ19.5all	36-M16all	88
R130-7	1195	962	75	70	85	36-Φ19all	36-M16*1.5all	98
R150-9	1196	963	79	80	90	36-φ19all	36-M16×1.5all	98
R210	1328	1083	80	94	111	28-Φ22	36-M20all	92
R225-7	1327	1083	88	94	111	30-Φ22	36-M20all	92
R265-7	1411	1132	88	110	121	34-φ24	36-M24all	82
R305-7	1526	1236	97	110	121	38-Φ26	40-M24all	90
R335-7	1526	1235	97	110	122	38-Φ26	40-M24all	90
R385-9	1550	1236	108	130	148	35-φ26	40-M24all	90
SH120A1	1170	972	56	78	89	28-φ19	36-M16all	98
SH120A3	1171	974	56	69	80	28-φ19	36-M16all	98
SH120Z3	1171	972	65	78	87	28-φ18.5	36-M16all	98
SH210-5	1330	1093	74	92	102	31-Φ22	36-M20all	92
SH240-3	1376	1092	89	113	123	27-φ26	36-M24all	92
SH240-5	1375	1092	87.5	112.5	123	28-φ26	36-M24all	92
SK75	810	585	62	61	77	24-Φ18	30-Φ18all	75
SK130-8	1132	920	60	75	85	34-Φ17	36-M16all	93
SK200-6	1312	1083	78	95	105	33-Φ22	36-M20*1.5all	110
SK200-6	1309	1084	78	96	106	33-φ22.5	36-M20×1.5all	110
SK200-8	1310	1083	76	98	106	33-Φ21	36-M20*1.5all	110
SK230-6	1411	1134	89	111	121	33-φ22	36-M20×1.5all	82
SK250-8	1418	1132	86	110	120	33-Φ22	36-M20*1.5all	82
SK350-8	1613	1272	100	110	120	35-Φ26	36-M24*2all	92
SY75	811	602	65	65	75	24-Φ18all	24-Φ18all	76
SY135	1122	822	90	90	100	36-Φ22all	36-M20all	83
SY215	1323	1071	77	90	100	32-Φ24	36-M20all	91
SY235	1327	1070	90	90	100	32-Φ22	36-M20all	91
SY245	1535	1236	97	110	122	34-φ26	40-M24all	89
SY365	1550	1238	104	136	152	35-Φ26	40-M24all	78
SY465	1680	1331	120	142	152	35-φ26	40-M24all	84
XE80	896	664	59	58	71	20-Φ17all	20-Φ17all	84
XE150	1097	822	70	80	89	36-Φ22all	36-M20/Φ22all	83
XE210	1321	1071.0	77	89	100	32-Φ24	36-M20all	91
XE215	1321	1071.0	77	89	100	32-Φ24	36-M20all	91
XE370	1587	1274	90	111	122	36-Φ26	40-M24all	92
XG815	1120	852	66	67	76	36-Φ22all	36-M20all	86
XG822	1370	1032	80	95	105	36-Φ22all	36-M22all	88
YC85	922	635	92	85	104	30-Φ22all	30-Φ22all	80
YC135	1195	963	74	70	85	36-Φ19all	36-M16all	98
YC230	1328	1082	90	94	110	36-Φ22all	36-M20all	92
EX60-5	774	552	60	65	78	24-φ18.5all	24-φ18all	71
EX120-5	1092	864	68	70	84	36-φ20all	36-φ18all	88
EX200-5	1312	1084	72	95	106	36-Φ22all	36-M20all	92
ZAX60	756	573	50	55	68	27-φ15.5	24-φ15.5all	90
ZAX70	806	596	60	61	75	25-Φ18	24-Φ18all	76
ZAX120-6	1090	860	68	70	86	30-Φ20	36-Φ18all	88
ZAX200	1312	1081	72	95	106	32-Φ22	36-M20*1.5all	92
ZAX200-3	1316	1083	77	85	97	37-Φ22	36-M20*1.5all	92
ZAX230	1420	1138	84	98	108	36-Φ24all	36-M22*1.5all	83
ZAX240-3	1415	1138	85	98	110	35-Φ24	36-M22*1.5all	83
ZAX330-1	1630	1296	95	110	120	40-Φ30	36-M27*2all	83
ZAX330-3	1630	1296	95	110	122	36-Φ29	36-M27*2all	83
ZAX450	1650	1274	119	110	130	36-φ29	36-φ29all	107
ZAX470-3	1651	1274	120	110	132	36-φ33	40-φ29all	107
ZE230	1370	1034	80	95	105	36-φ21.5	36-M22 countersunk hole φ24 both	88
ZE360	1526	1236	97	110	122	35-φ26	40-M24all	90
ZT90W	900	665	70	70	85	30-Φ18	30-Φ18all	85
ZT150W	1201	945	74	70	82	36-Φ21	36-M20all	80
Foton 60	811	621.6	65	65	75	24-Φ18all	24-Φ18all	90
Foton 85	908	648	68	68	78	24-Φ22all	24-M20all	82
SEW70H	810	572	70	70	80	32-Φ16all	32-M14all	96
TATA	1312	1084	72	95	106	36-Φ22all	36-M20*1.5all	92
