skid steer loader

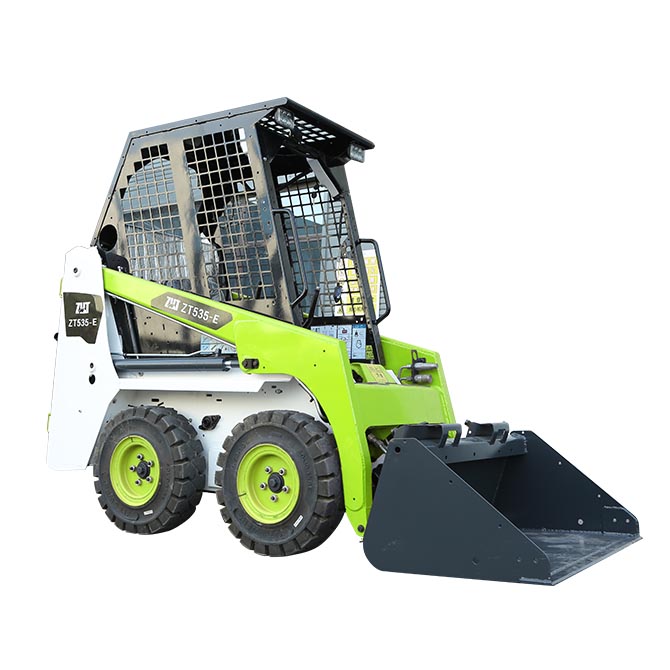

ZT535-E

  • Rated operating capacity

    343 kg

  • System voltage

    72V

  • System capacity

    320A.h

  • Rated energy

    23.04kWh

  • Motor form

    Permanent magnet synchronous motors

  • Maximum travel speed

    9.8 km/h

Machine rating
Rated operating capacity343 kg
Tipping load686 kg
Pump capacity37 Min. at 100% efficiency
System safety valve at quick connector207 bar
Maximum travel speed9.8 km/h


Battery section
System voltage72V
System capacity320A.h
Rated energy23.04kWh


Motor section
FormPermanent magnet synchronous motor
Rated power9kW
Rated speed4000rpm
Rated torque40N·m
Max. speed6000rpm
Peak power16kW
Peak torque90N·m
Rated voltage72V
Protection classIP67


Options
Heated enclosed cab23 x 8.50-12, 6-ply, heavy duty tyres


Standard Features
Plug Bob Tachometer™ Frame
(BICS) engine/hydraulic
System pre-shutdown assistance
Hydraulics
High backrest cushion suspension
Seat gauges
Lift arm bracket
23 x 5.70-12, 4-ply, narrow
Tyre work lights, front and
Rear cab
Parking brake
*roll-over protection structure (ROPS)
-Conforms to SAE-J1040 and ISO 3471


Control
Vehicle steering systemsDirection and speed controlled by two handles
Loader hydraulic tilt and liftIndependent foot pedals
Front assistance systemsLateral movement of the right steering lever


Drive systems
TransfersInfinitely variable tandem hydrostatic piston pump
Drives two fully counter-rotating hydrostatic motors


Weight
Weight Working weight1268 kg

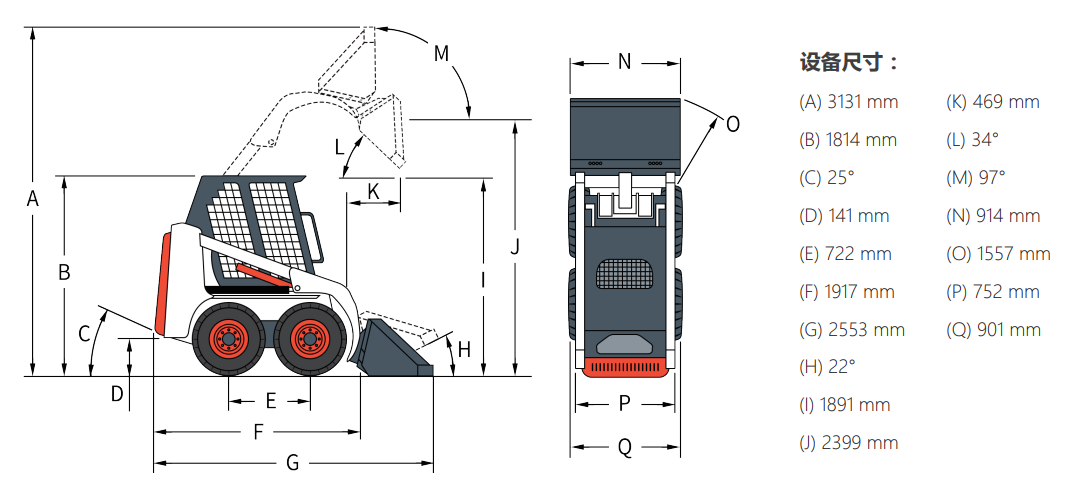

Size
