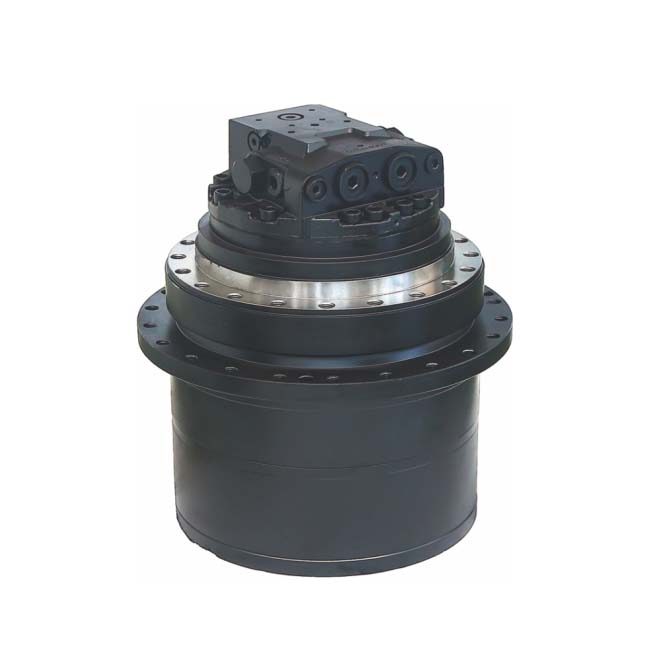

Applicable models: 20-25 tonnage hydraulic crawler travel drive device,

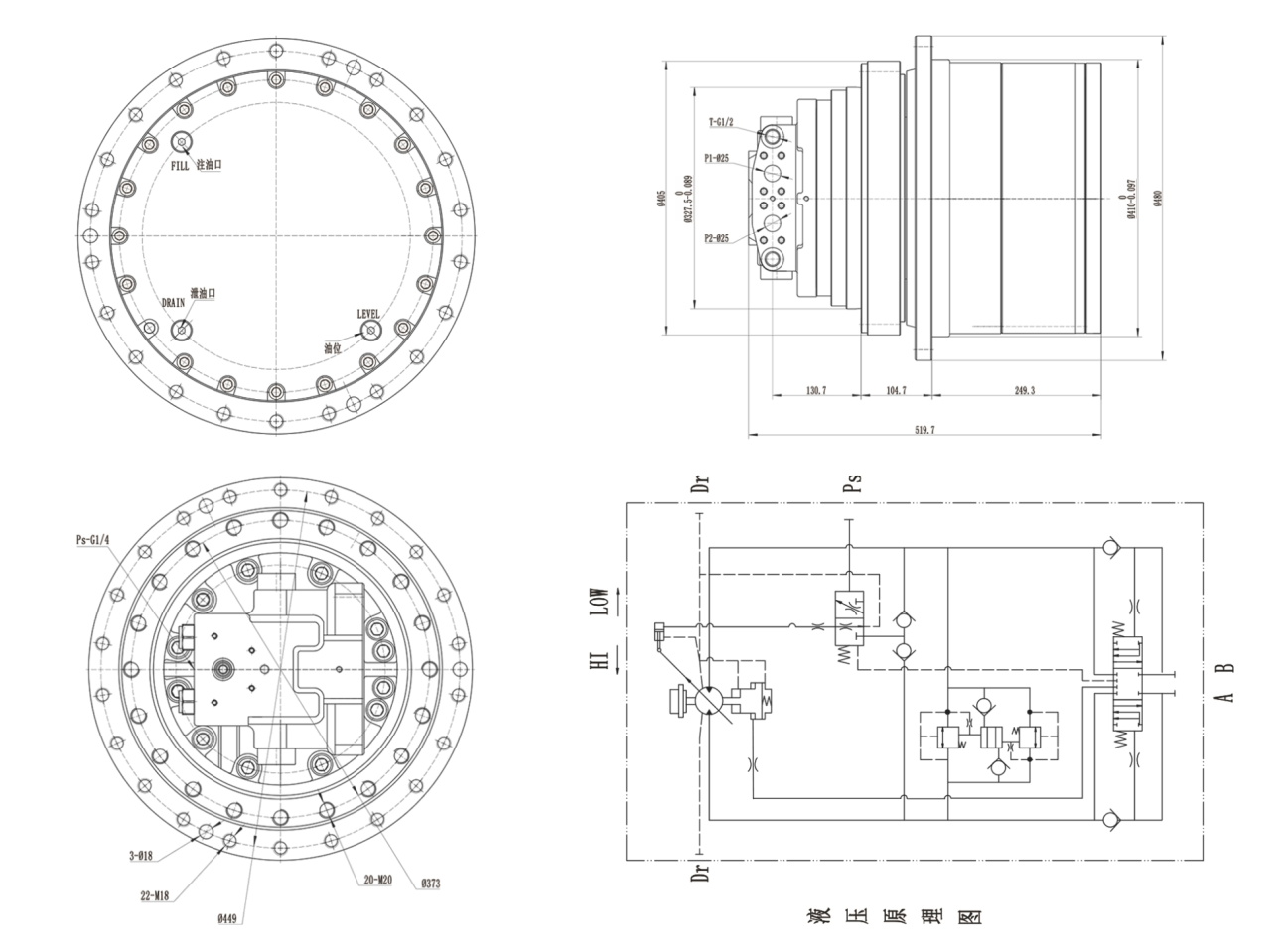

Frame mounting hole 20-M20, frame inner diameter 327;
Drive tooth mounting hole 22-M18, drive tooth inner diameter 410
SK200-3/5/5.5/6/7
74/139
34.3
230
20400/38300
50.5
61/32
Applicable models: 20-25 tonnage hydraulic crawler travel drive device,
Frame mounting hole 20-M20, frame inner diameter 327;
Drive tooth mounting hole 22-M18, drive tooth inner diameter 410
SK200-3/5/5.5/6/7
It is the only enterprise in China's excavator construction machinery industry that has pushed the development and manufacturing of reducers to industrialization.
